Specifications
Brand: HPE
MPN: P28586-B21
General
Device Type: Hard Drive – Hot-Swap
Capacity: 1.2 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Format Type: 512n
Carrier Type: Basic Carrier (BC)
Workload: Mission Critical
Features: Advanced format 512n
Bundled with: HPE Basic Carrier
Performance
Drive Transfer Rate: 12 Gbps (external)
Spindle Speed: 10000 RPM
OD Media Rate, Max Sequential Throughput (MiB/s): 195
128Kib Random Rd (IOPs): 165
128Kib Random 70% RD/ 30% WT (IOPs): 165
128Kib Random 50% RD/ 50% WT (IOPs): 165
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5″ SFF
Power Requirement
Idle Time: 4.10 Watt
Random R/W: 7.50 Watt
Sequential Read: 6.50 Watt
Sequential Write: 6.10 Watt
Product Dimensions & Weight
Height: 5.75 inch (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Returns
This product is warrantied against hardware failure for a period of 3 Years from the date of purchase.

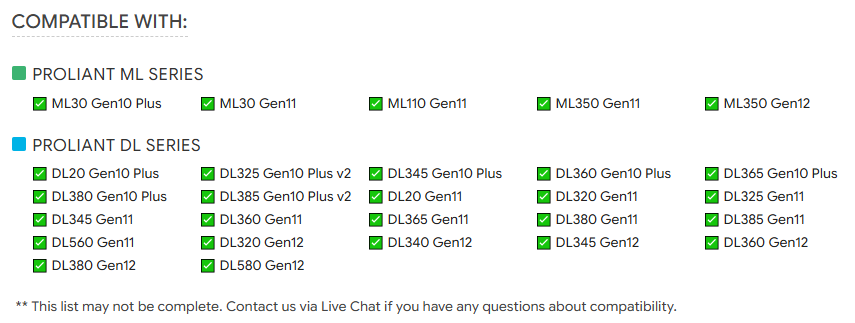

It is the customer’s responsibility to verify compatibility with their machine(s) before placing an order.
Please contact with us if you have any question or to know the compatibility of this with your current server or storage array.
