P63930-B21 HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

  • Device Type: Solid state drive – hot-swap
  • Capacity: 15.36 TB
  • Form Factor: EDSFF (E3.S)
  • Interface: PCI Express 5.0 x4 (NVMe)
  • Height: 0.3 in (7.5 mm)
  • Weight: 19.05 oz
  • Bundled with: HPE E3.S EC1 Thin Carrier
  • Drive Writes Per Day (DWPD): 1
  • SSD Endurance: 28,032 TB
  • Drive Class: Read Intensive, High Performance
  • 4KB Random Read: 197,931 IOPS
  • 4KB Random Write: 359,542 IOPS
  • Maximum 4KB Random Write: 363,570 IOPS
  • Maximum 4KB Random Read: 1,060,146 IOPS
  • Interfaces: 1 x PCI Express 5.0 (NVMe)
  • Compatible Bay: EDSFF E3.S
  • Power Consumption: 24.6 Watt

Features

This item, P63930-B21, is the HPE option part number for the product described as 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD. Further details below.

Experience unparalleled data handling with the HPE 3.84TB NVMe Gen4 Mainstream Performance SSD (P63930-B21). Designed for read-intensive applications, this drive offers high-performance speeds with up to 1,060,146 IOPS for maximum 4KB random reads. Compatible with HPE Gen11 and Gen12 servers, it’s ideal for enterprises seeking reliable, efficient storage solutions. With a compact EDSFF form factor and PCI Express 5.0 interface, this SSD ensures exceptional scalability and performance.

HPE Option Part #: P63930-B21
HPE Spare Part #: P64196-001

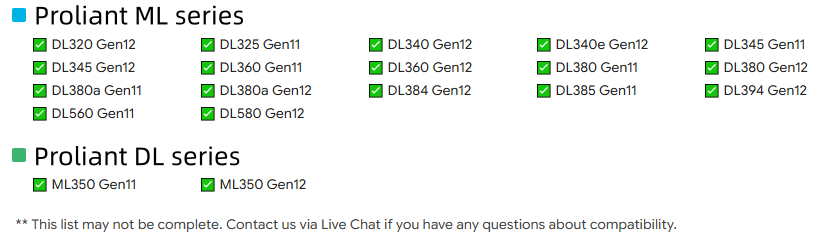

Compatible with:

FREQUENTLY ASKED QUESTIONS FOR P63930-B21:

  • What server models are compatible with the P63930-B21 SSD?
    The P63930-B21 SSD is compatible with HPE Gen11 and Gen12 server models, including DL345, DL360, DL380, and others.
  • What is the endurance of the P63930-B21 SSD?
    The P63930-B21 SSD has an endurance of 28,032 TB and a Drive Writes Per Day (DWPD) rating of 1, making it suitable for read-intensive applications.
  • What is the form factor of the P63930-B21 SSD?
    The P63930-B21 SSD features an EDSFF (E3.S) form factor and comes bundled with an HPE E3.S EC1 Thin Carrier for seamless integration.
Besides the models listed on our website, we have many more. Feel free to send an inquiry for pricing.
